उत्पाद विवरण
Place of Origin: Guangdong,China
ब्रांड नाम: LINK-PP
प्रमाणन: RoHS Compliant
Model Number: 615008138021
भुगतान और शिपिंग शर्तें
Minimum Order Quantity: 400/2000/10K/25K
मूल्य: $0.09-$2.5
Packaging Details: T&R
Delivery Time: About 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Number of Pins: |
8P8C |
Operating Temperature: |
-40 °C up to +85 °C |
Mount: |
THT |
Mounting Angle: |
Vertical |
EMI Fingers: |
Without |
Application System: |
CAT 3 |
Shielding: |
Unshielded |
Number of Pins: |
8P8C |
Operating Temperature: |
-40 °C up to +85 °C |
Mount: |
THT |
Mounting Angle: |
Vertical |
EMI Fingers: |
Without |
Application System: |
CAT 3 |
Shielding: |
Unshielded |
| Number of Pins | 8P8C |
| Operating Temperature | -40 °C up to +85 °C |
| Mount | THT |
| Mounting Angle | Vertical |
| EMI Fingers | Without |
| Application System | CAT 3 |
| Shielding | Unshielded |

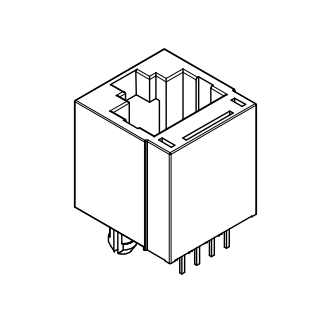

The 615008138021 is a single-port, 8P8C (8-position, 8-contact) modular jack from the WR-MJ series. It is commonly referred to as an RJ45 connector and is designed for through-hole mounting (THT) in a vertical orientation. This unshielded connector is engineered for reliability in general electronic equipment and data communication systems.
| Part Number | 615008138021 |
| Connector Type | Modular Jack (RJ45, Ethernet) |
| Port Configuration | 1 x 1 |
| Positions / Contacts | 8P8C |
| LAN Category | Cat3 |
| Mounting Type | Through Hole Mount (THT) |
| Orientation | Vertical |
| Shielding | Unshielded |
| LEDs / Magnetics | Does not contain LED or Magnetics |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Insulator Material | PBT, Black, UL94 V-0 |
| Rated Current | 1.5 A |
| Working Voltage | 120 VAC |
| Withstanding Voltage | 1000 VAC (for 1 min) |
| Operating Temperature | -40°C to +85°C |
| Durability | 500 Mating Cycles |
| Certifications | UL, RoHS, REACH |
