उत्पाद विवरण
उत्पत्ति के प्लेस: गुआंग्डोंग, चीन
ब्रांड नाम: LINK-PP
प्रमाणन: UL,RoHS,Reach,ISO
मॉडल संख्या: J9151D
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 400/2000/10k/25k
मूल्य: $3.2-$5
पैकेजिंग विवरण: टी एंड आर
प्रसव के समय: 3 दिनों के भीतर स्टॉक जहाज में
भुगतान शर्तें: टीटी, नेट 30/60/90 दिन
आपूर्ति की क्षमता: 3kk/महीना
भाग संख्या: |
J9151D |
100% क्रॉस: |
एलएस-एसएम3110-10सी |
शृंखला: |
एसएफपी+ 10जीबेस एलआर |
डोम/डीडीएम: |
सहायता |
गर्म: |
हाँ |
आवेदन: |
10GBASE-LR ईथरनेट |
भाग संख्या: |
J9151D |
100% क्रॉस: |
एलएस-एसएम3110-10सी |
शृंखला: |
एसएफपी+ 10जीबेस एलआर |
डोम/डीडीएम: |
सहायता |
गर्म: |
हाँ |
आवेदन: |
10GBASE-LR ईथरनेट |

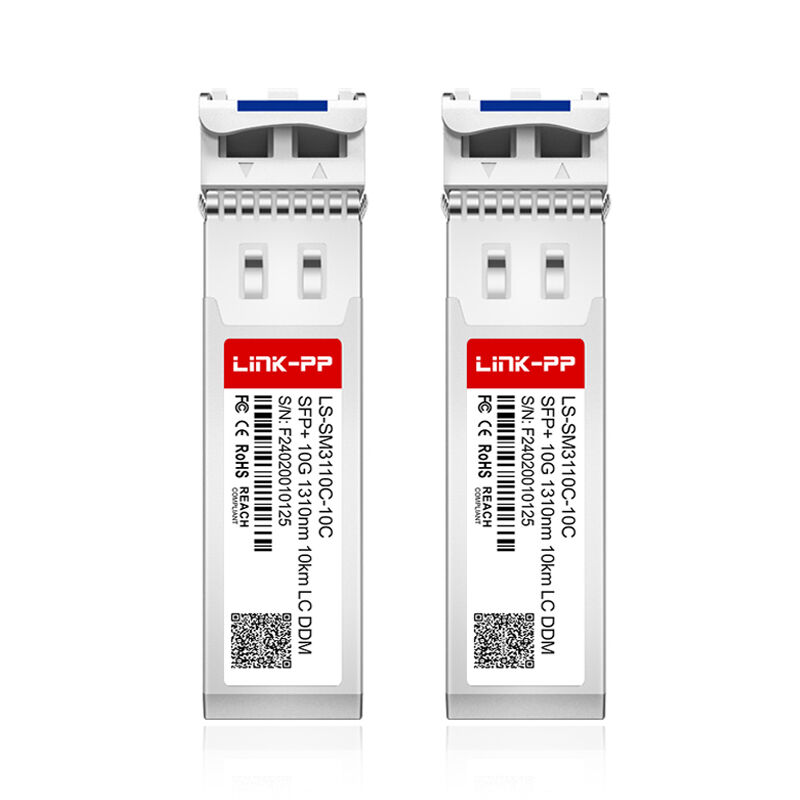

HPE Aruba J9151D 10G SFP+ LR Transceiver, 1310 nm, 10 km SMF, LC Duplex, DDM Supported — High-performance long-reach 10-Gigabit optical module for enterprise and data-center networks.
The HPE Aruba J9151D is a high-performance 10G SFP+ LR (Long-Reach) optical transceiver designed for enterprise switching, data-center interconnects, aggregation networks, and backbone links.
Operating at 1310 nm over single-mode fiber (SMF), the J9151D delivers up to 10 km transmission distance and supports full 10-Gigabit Ethernet performance.
Featuring Digital Optical Monitoring (DOM/DDM), low power consumption, and full compliance with SFP+ MSA and IEEE 802.3ae 10GBASE-LR standards, the J9151D ensures stable and reliable fiber connectivity for mission-critical deployments.
| Parameter | Specification |
|---|---|
| Model | HPE Aruba J9151D |
| Form Factor | SFP+ |
| Application | 10GBASE-LR Ethernet |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) 9/125 µm |
| Connector |
Duplex LC |
| Parameter | Specification |
|---|---|
| Data Rate | 1.25–10.31 Gbps |
| Max Distance | 10 km over SMF |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | approx. −14 dBm (typical) |
| Optical Budget | approx. 6 dB (varies by vendor) |
| Parameter | Specification |
|---|---|
| Power Supply | +3.3 V |
| Operating Temperature | 0°C to 70°C (commercial) |
| Compliance | SFP+ MSA, IEEE 802.3ae, IEC-60825-1 laser safety, RoHS |
| DOM/DDM Support | Yes (temperature, voltage, Tx/Rx optical power) |
