उत्पाद विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: LINK-PP
प्रमाणन: ISO 9001,ISO 14001,UL,SGS,REACH168
मॉडल संख्या: 1-1840727-6
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 50/500/1000/25K
मूल्य: $0.09-$1.85
पैकेजिंग विवरण: 50 पीसी/1Tray, 20 ट्रे/1 कार्टन, 32*30*31 सेमी, 8kgs (1000pcs)/1 कार्टन
प्रसव के समय: स्टॉक शिप में आज
भुगतान शर्तें: टीटी, NET30/60/90 दिन
आपूर्ति की क्षमता: 4200K-पीसीएस/महीना
भाग संख्या: |
1-1840727-6 |
एलईडी विन्यास: |
हरा पीला |
गति: |
1000बेस-टी |
परिचालन तापमान: |
0 ~ +70ºC |
टैब: |
ऊपर |
ईएमआई टैब: |
हाँ |
भाग संख्या: |
1-1840727-6 |
एलईडी विन्यास: |
हरा पीला |
गति: |
1000बेस-टी |
परिचालन तापमान: |
0 ~ +70ºC |
टैब: |
ऊपर |
ईएमआई टैब: |
हाँ |
| Specification | Details |
|---|---|
| Connector Type | RJ45 with Integrated Magnetics |
| Number of Ports | Single (1X1 Configuration) |
| Application | 1000BASE-T Gigabit Ethernet |
| Circuit Type | Gigabit Current |
| LED Configuration | Green/Yellow |
| Tab Direction | Up |
| Housing Material | Thermoplastic, Black, UL 94V-0 Rated |
| Shield Material | Copper Alloy with Nickel Plating |
| Contact Material | Phosphor Bronze with Gold Plating |
| LED Current | Constant Current at Approx. 20mA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Compliance | IEEE 802.3, RoHS |
| LED Position | Color | Typical Indication |
|---|---|---|
| Left LED | Green | Link Status |
| Right LED | Yellow | Activity/Speed |
| Dimension | Measurement |
|---|---|
| Length | 33.02 mm |
| Width | 19.19 mm |
| Height | 15.01 mm |

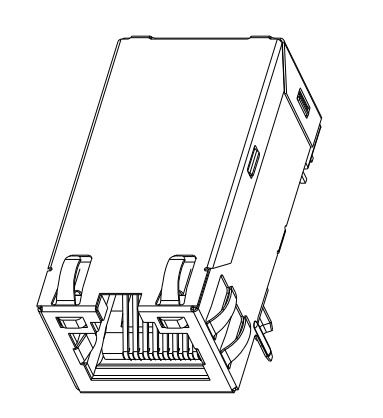

The 1-1840727-6 MagJack features a through-hole mounting design for secure PCB installation. The connector's Tab Up orientation facilitates proper alignment during assembly, ensuring correct positioning and reliable connections. The thermoplastic housing provides excellent durability and heat resistance, making it suitable for various manufacturing processes, including wave soldering.
When designing with the 1-1840727-6 MagJack, engineers can benefit from simplified PCB layouts due to the integrated magnetic components. This integration eliminates the need for separate transformers and common-mode chokes, reducing component count and potential failure points. The Gigabit circuit ensures optimal signal integrity for high-speed data transmission in 1000BASE-T applications.
